Specification:

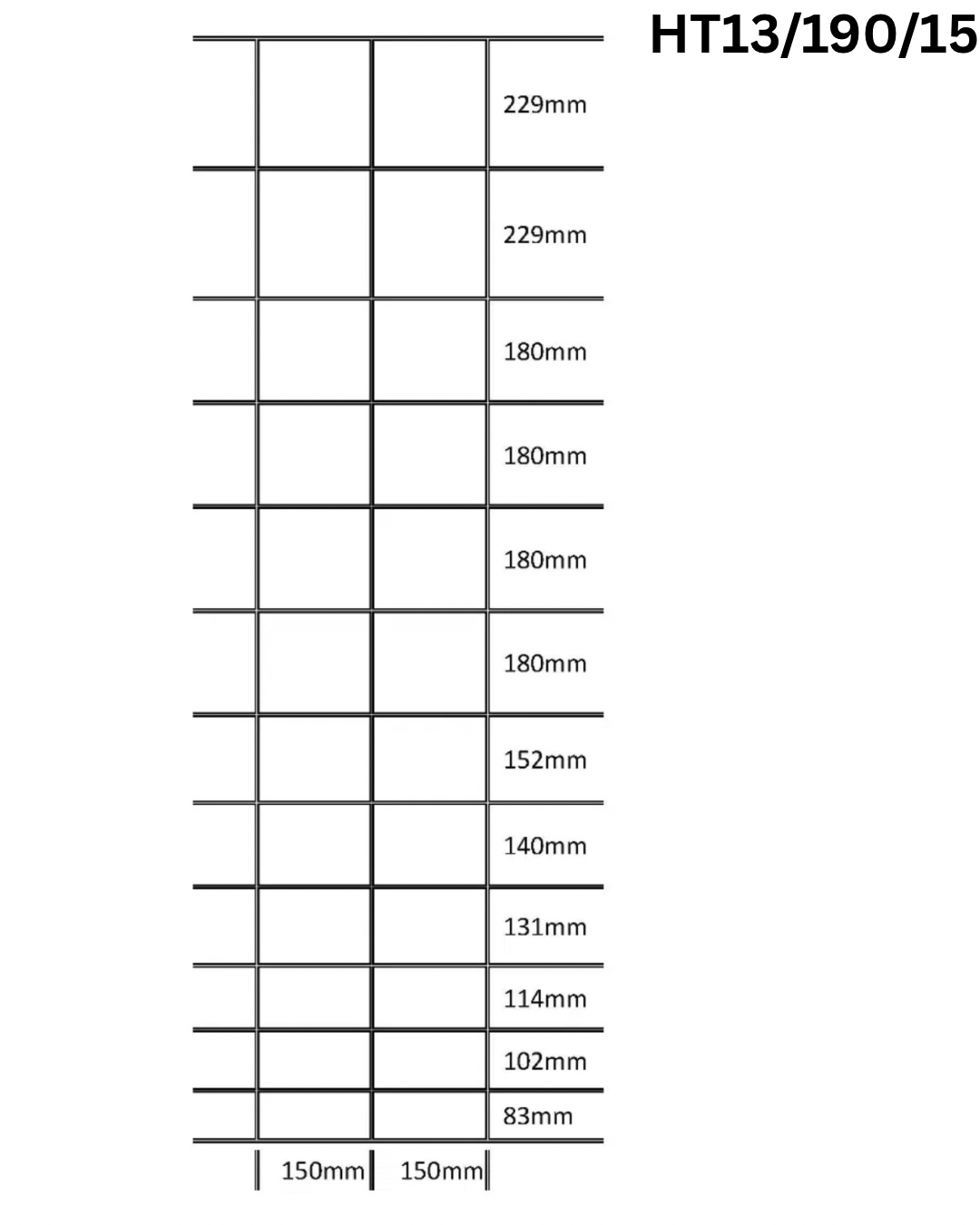

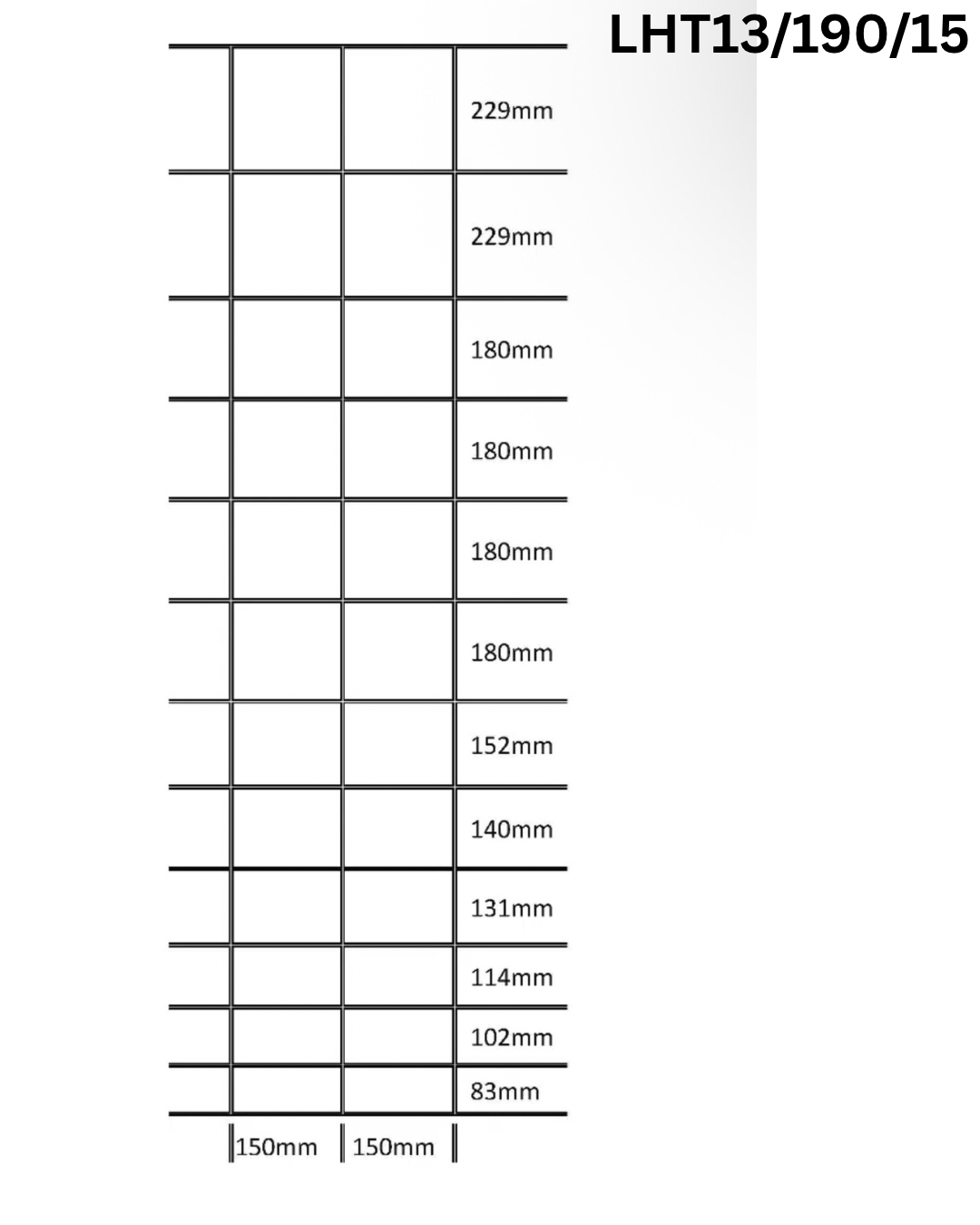

No. of Line Wires |
13 |
Overall Height (cm) |
190 |
Distance between stay wires (cm) |
15 |
Top & bottom line wire specification |
2.5mm dia – 1235-1390 N/mm2 |
Intermediate line wire specification |
2.5mm dia – 1235-1390 N/mm2 |

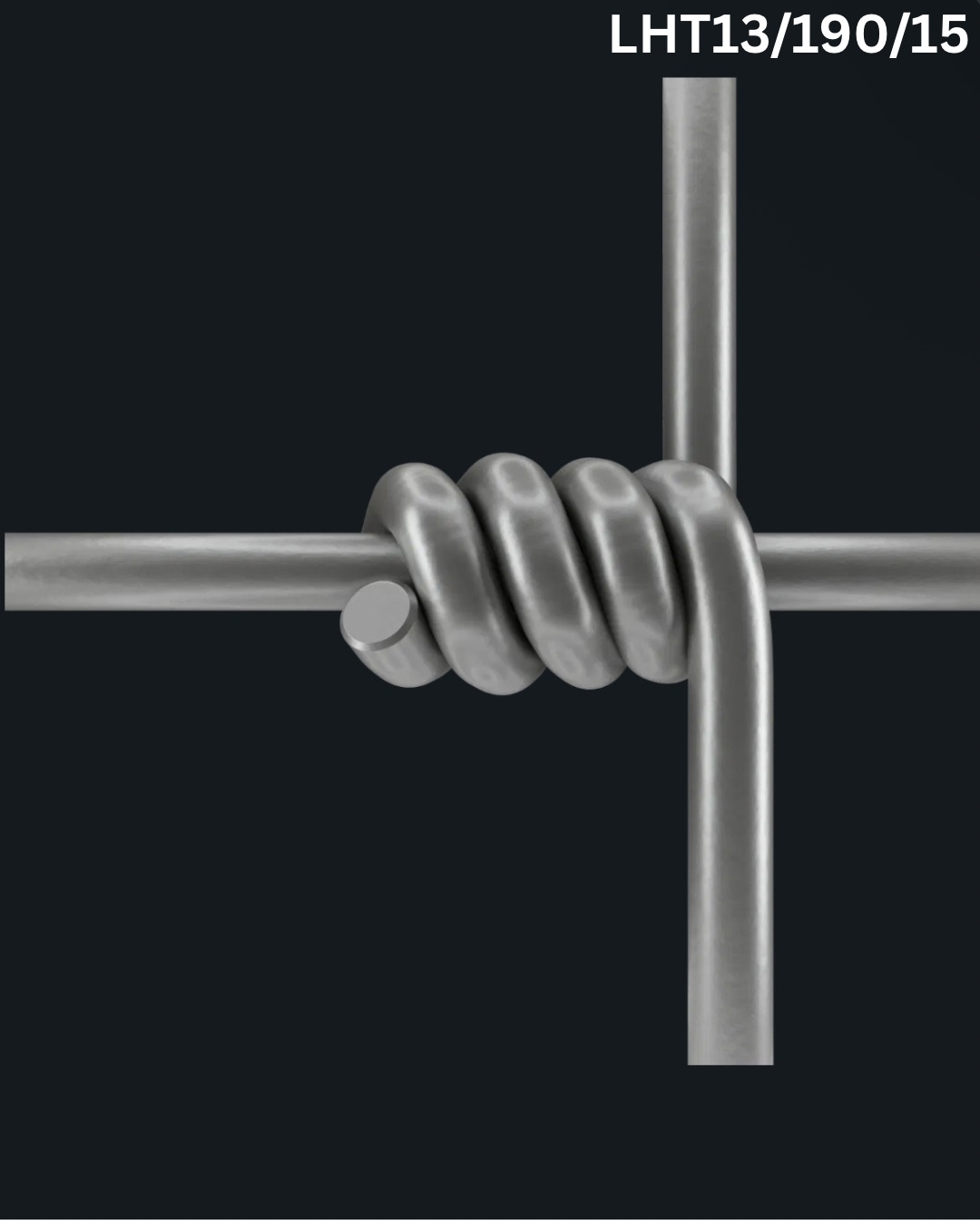

Vertical stay wire specification |
2.5mm dia – 695-850 N/mm2 |
Average Weight per 100 Metre Roll (kg) |
113.90 |
Material Composition |
Heavily galvanised steel wire |
