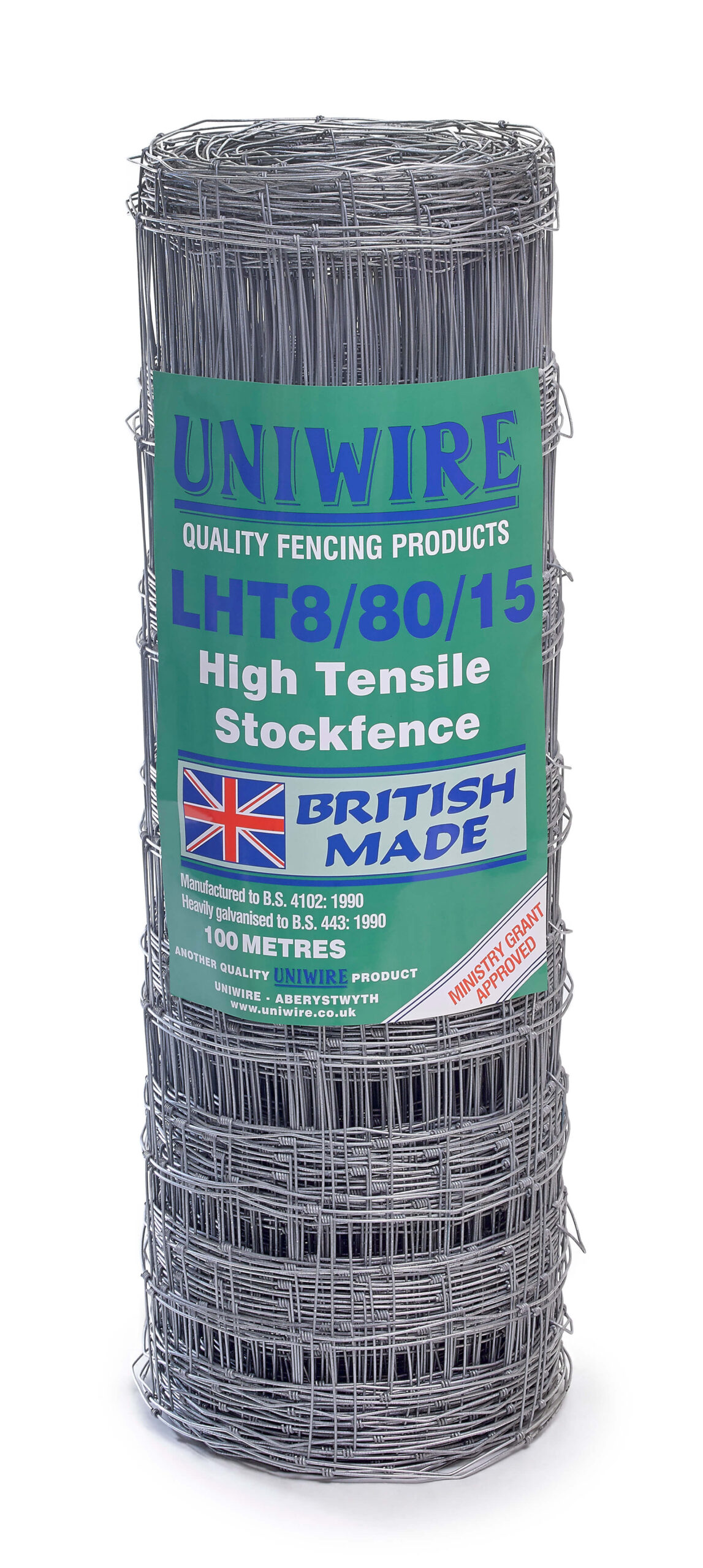

LHT8/80/15 – Lightweight High Tensile (100m)
LHT8/80/15 is the lightweight high tensile alternative to HT8/80/15. It is mostly used in areas of low stock pressure or for a medium term project.
High tensile fencing can be strained tighter than mild steel and therefore requires less intermediate posts. It does not stretch like mild steel and is a far stronger option. Because of the need for less posts, high tensile fencing is quicker to erect and can be a more cost effective fence than mild steel.
| Line wires | 8 |
| Distance between vertical wires | 15cm |
| Height | 80cm |
| Top and bottom line wires | 2.0mm – 1235-1390 N/mm2 |
| Intermediate line wires | 2.0mm – 1235-1390 N/mm2 |
| Vertical wires | 2.0mm – 695-850 N/mm2 |
| Roll lengths available | 100m, 200m, 250m |
| Weight of 100m roll | 38kg |
HT5/53/15 High Tensile (100m)
HT5/53/15 is a high tensile fence. It is designed to be used below a hedge to stop stock from moving through, or on top of a wall to stop stock moving over. It can also be used as a low height stand alone fence.
High tensile fencing can be strained tighter than mild steel and therefore requires less intermediate posts. It does not stretch like mild steel and is a far stronger option. Because of the need for less posts, high tensile fencing is quicker to erect and can be a more cost effective fence than mild steel.
| Line wires | 5 |
| Distance between vertical wires | 15cm |
| Height | 53cm |
| Top and bottom line wires | 2.5mm – 1235-1390 N/mm2 |
| Intermediate line wires | 2.5mm – 1235-1390 N/mm2 |
| Vertical wires | 2.5mm – 695-850 N/mm2 |
| Roll lengths available | 100m |
| Weight of 100m roll | 37kg |
HT5/53/30 – High Tensile (100m)
HT5/53/30 is a alternative to HT5/53/15 but with a 30cm gap between the uprights. It is designed to be used below a hedge to stop stock from moving through, or on top of a wall to stop stock moving over. It can also be used as a low height stand alone fence.
High tensile fencing can be strained tighter than mild steel and therefore requires less intermediate posts. It does not stretch like mild steel and is a far stronger option. Because of the need for less posts, high tensile fencing is quicker to erect and can be a more cost effective fence than mild steel.
| Line wires | 5 |
| Distance between vertical wires | 30cm |
| Height | 53cm |
| Top and bottom line wires | 2.5mm – 1235-1390 N/mm2 |
| Intermediate line wires | 2.5mm – 1235-1390 N/mm2 |
| Vertical wires | 2.5mm – 695-850 N/mm2 |
| Roll lengths available | 100m |
| Weight of 100m roll | 29kg |
HT8/80/15 – High Tensile (100m or 250m)
HT8/80/15 is the high tensile equivalent to C8/80/15 This fence is the most popular high tensile specification. HT8/80/15 is a very strong and versatile fence that can withstand heavy stock pressure.
High tensile fencing can be strained tighter than mild steel and therefore requires less intermediate posts. It does not stretch like mild steel and is a far stronger option. Because of the need for less posts, high tensile fencing is quicker to erect and can be a more cost effective fence than mild steel.
| Line wires | 8 |
| Distance between vertical wires | 15cm |
| Height | 80cm |
| Top and bottom line wires | 2.5mm – 1235-1390 N/mm2 |
| Intermediate line wires | 2.5mm – 1235-1390 N/mm2 |
| Vertical wires | 2.5mm – 695-850 N/mm2 |
| Roll lengths available | 100m, 200m, 250m |
| Weight of 100m roll | 60kg |
HT8/90/15 – High Tensile (100m)
Description coming soon
HT8/80/22 – Lamb safe – High Tensile (100m or 250m)
HT8/80/22 is an alternative to HT8/80/15 but with 22cm (9“) spacing between the vertical wires, making it ideal for sheep and lambs since the wider spacing helps prevent lambs getting their heads trapped in the fence. This fence is ministry grant approved.
High tensile fencing can be strained tighter than mild steel and therefore requires less intermediate posts. It does not stretch like mild steel and is a far stronger option. Because of the need for less posts, high tensile fencing is quicker to erect and can be a more cost effective fence than mild steel.
| Line wires | 8 |
| Distance between vertical wires | 22cm |
| Height | 80cm |
| Top and bottom line wires | 2.5mm – 1235-1390 N/mm2 |
| Intermediate line wires | 2.5mm – 1235-1390 N/mm2 |
| Vertical wires | 2.5mm – 695-850 N/mm2 |
| Roll lengths available | 100m, 200m, 250m |
| Weight of 100m roll | 52kg |
HT8/80/30 – High Tensile (100m)
HT8/80/30 is an economical alternative to HT8/80/15 and HT8/80/22 with 30cm (12“) spacing between the vertical wires. This fence is ministry grant approved.
High tensile fencing can be strained tighter than mild steel and therefore requires less intermediate posts. It does not stretch like mild steel and is a far stronger option. Because of the need for less posts, high tensile fencing is quicker to erect and can be a more cost effective fence than mild steel.
| Line wires | 8 |
| Distance between vertical wires | 30cm |
| Height | 80cm |
| Top and bottom line wires | 2.5mm – 1235-1390 N/mm2 |
| Intermediate line wires | 2.5mm – 1235-1390 N/mm2 |
| Vertical wires | 2.5mm – 695-850 N/mm2 |
| Roll lengths available | 100m, 200m, 250m |
| Weight of 100m roll | 44kg |
