Trailer Engineering 950 Litre U.N. Approved Bunded Diesel EU Highway Bowser

Code:

The 950 litre bunded diesel EU highway bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund. Our 950 litre bunded diesel EU highway bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel. This bunded diesel eu highway bowser comes with lockable rear door, four lifting points and two fork sockets (for when the tank is out of the chassis). Complete with a fully certified single axle highway tow able trailer. The A-frame trailer is fully welded and manufactured from steel and then galvanised as standard, Painted chassis are available upon request.

Please complete the form below for a quote including shipping:

£5,145.00 – £6,104.00 Inc. VAT

In Stock

Description
Additional information

BUNDED DIESEL EU HIGHWAY BOWSER DIMENSIONS (APPROXIMATE):

WIDTH:	1.550m (61”)
HEIGHT:	1.524m (60”)
LENGTH:	3.555m (140”)
TOWING HEIGHT	(Level) 580mm
UNLADEN WEIGHT:	476kg
LADEN WEIGHT:	1300kg approx – 1500kg max

CHASSIS:

The bunded diesel EU highway bowser chassis is constructed from 100 x 50 RSC fully welded with front standing plate and an ‘A’ frame drawbar. Hot dip galvanised.

Technical Specifications

AXLE/SUSPENSION:

Single Knott-Avonride 1500kg torsion beam axle fitted with 200 x 50 Auto reverse brakes

WHEELS AND TYRES:

2 No 175 x 13 x 8 ply radial tyres. 4 stud 51⁄2”pcd rims.
COUPLING: Knott-Avonride 2000kg posibrake over run auto reverse c/w spring
assisted handbrake lever, breakaway cable & 40mm ring eye or 50mm ball.

COUPLING:

Knott-Avonride 2000kg posibrake over run auto reverse c/w spring
assisted handbrake lever, breakaway cable & 40mm ring eye or 50mm ball.

ANCILLARY EQUIPMENT:

Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, Side reflectors, front reflectors, full road lighting c/w 13 pin plug and 7 pin adapter.

OUTER BUND TANK:

Cylindrical in section with removable top section for tank access. Rear access door, fitted with stainless steel hinge and fully lockable. Bund contains 110% of inner tank. 4 lifting eyes, fork truck sockets for use when tank is not fitted in a chassis.

INNER FUEL TANK:

The bunded diesel EU highway bowser inner fuel tank is constructed from translucent heavy duty polyethylene with a capacity of 980 Litres. 2” filler with cap & chain. 1” manual vent valve. Pressure relief valve in the top of the tank. Ball valve in base of tank to pump.

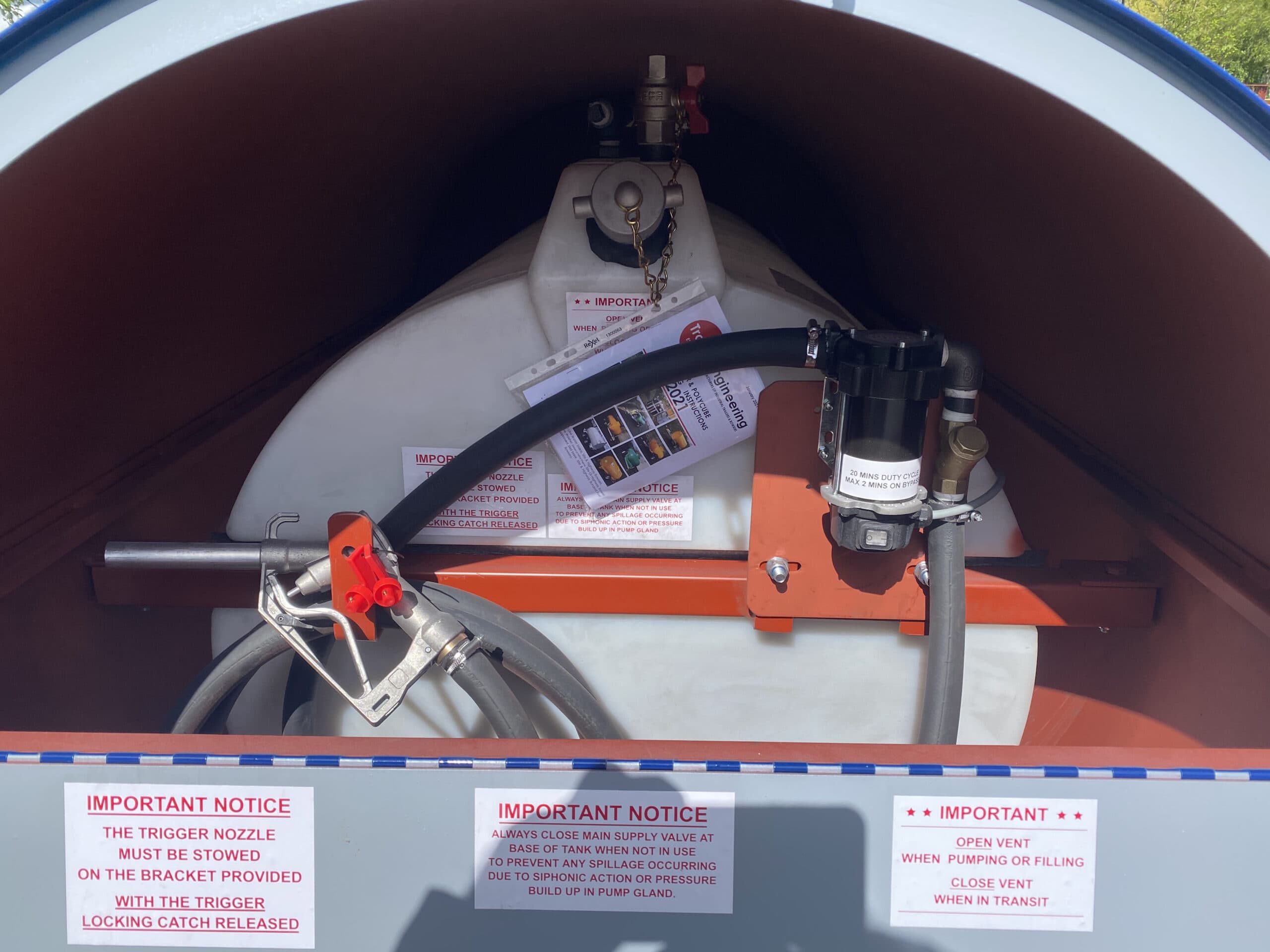

PUMP:

K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1″ fuel hose & trigger nozzle. Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.

FINISH:

Tank- Primer and two top coats, single British Standard colour. Galvanised Chassis.
